- Frame and filling
– Vertical uprights:
. steel 60×40 th. 2.5mm
. horizontal tubes: 40×25 steel
. cross in 25×25 steel tube

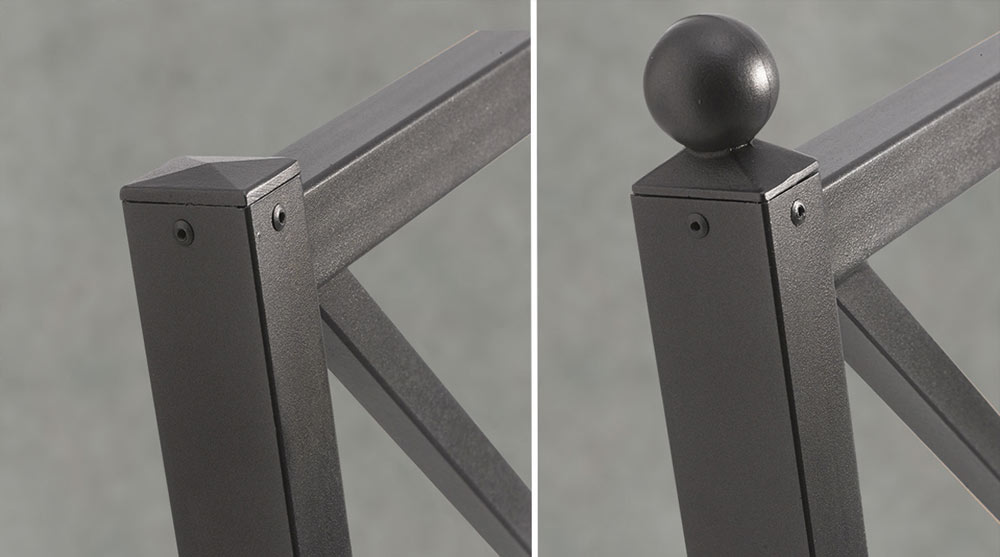

– 2 finishes : cap in foundry aluminum “diamond points” or balls
– Central molded steel badge with reservation for possible customization (logo, coat of arms, etc.)
- Surface coating : hot dip galvanizing (after manufacture) + powder coating.
As an option, a wide choice of colors and textures.
Several types of fixings available :
– Fixing 1 (on plates)
– Fixing 2 (direct sealing)
– Fixing 3 (removable in socket to seal)
– Diamond point finish: JMU-0114
– Ball finish: JMU-011
