Specifications

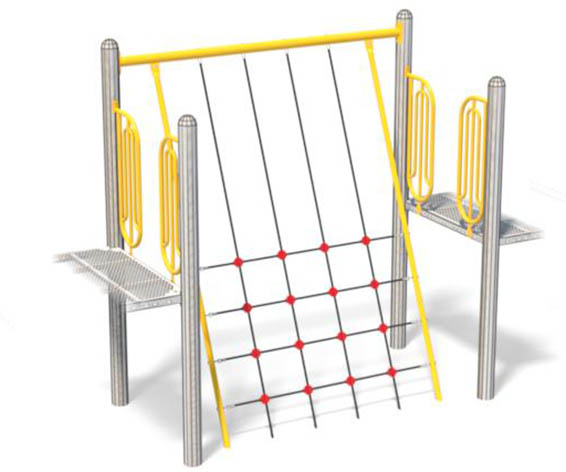

Crooked Net Link is a mechanical assembly of net, support bar and side support bar. Net is 0.625” (16mm) O.D. steel strand fibre-core polycable with polyfix x-joint, t-joint and polyfix standard ferrule. Support bar is a welded assembly of 2.875” (73mm) O.D. x 8 gauge (4mm) Allied Flo-Coat® galvanized steel tube, 0.25” x 3.5” (6mm x 89mm) zinc-plated hot-rolled mild flat steel, and 0.25” x 2” (6mm x 51mm) zinc-plated hot-rolled mild flat steel. Side support bar is 1.66” (42mm) x 11 gauge (3mm) Allied Flo-Coat® galvanized steel tube. Support bar and side support bar are powder-coat painted.
Age Range:
5 to 12 Years
Deck Heights:
Links two 4′ (1219mm) or 5′ (1524mm) decks.
Playground Standards:
CSA Z614, ASTM F1487
Component Colors:
Color is a personal choice and an essential part in good playground design. Our playground consultants will help you make the best choices. See our Color Combinations or Color Options pages for more information.
