Specifications

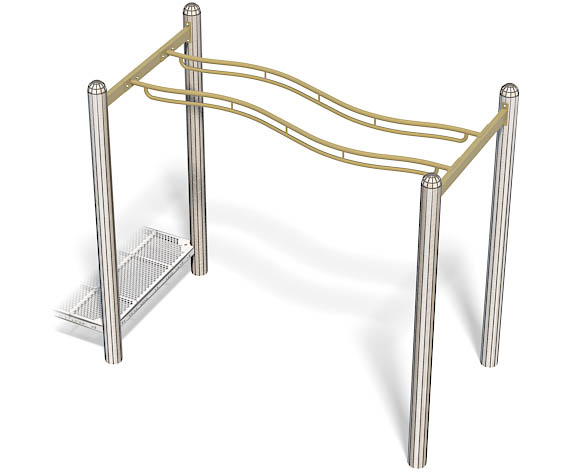

Double Snake Rail Overhead Ladder is a mechanical assembly of snake overhead ladder, support bar, and brackets. Snake rails are a welded assembly of 1.315” (33mm) O.D. x 12 gauge (3mm) Allied Flo-Coat® galvanized steel tube, 1.029” (26mm) O.D. x 14 gauge (2mm) Allied Flo-Coat® galvanized steel tube, and 0.5” (13mm) O.D. hot-rolled steel bar. Support bar is a welded assembly of 1.5” x 3” (38mm x 76mm) rectangular x 11 gauge (3mm) Allied Flo-Coat® galvanized steel tube, and 0.1875” x 1.75” (5mm x 44mm) zinc-plated hot-rolled mild flat steel. Brackets are 10 gauge (3mm) satin-coated steel sheet. Entire assembly is powder-coat painted.
Age Range:
2 to 5 Years: Maximum Height of Overhead 1.5 m (59.06 in)
5 to 12 Years: Maximum Height of Overhead 2.1 m (82.68 in)
Deck Heights:
0, 1ft (0, 0.3m) for 2 to 5 years
0, 1, 2ft (0, 0.3, 0.61m) for 5 to 12 years
Playground Standards:
CSA Z614, ASTM F1487
Component Colors:
Color is a personal choice and an essential part in good playground design. Our playground consultants will help you make the best choices. See our Color Combinations or Color Options pages for more information.
