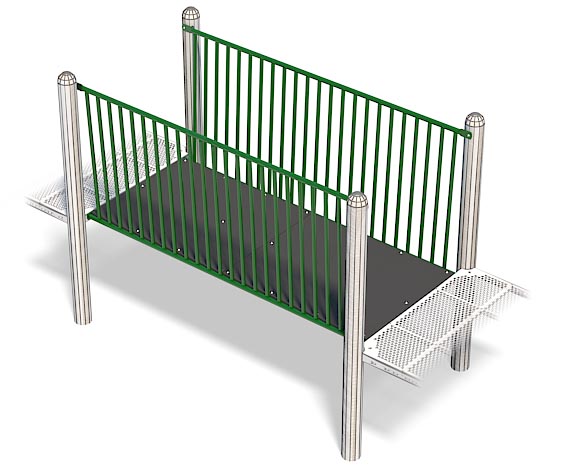

Flat Bridge is a mechanical assembly of support bar, protective barrier and decking. Support bar is 0.75” x 1.5” (19mm x 38mm) rectangular x 16 gauge (3mm) Allied Flo-Coat® galvanized steel tube. Protective railing is a welded assembly of 1.315” (33mm) O.D. x 12 gauge (3mm) Allied Flo-Coat® galvanized steel tube, 1.029” (26mm) O.D. x 14 gauge (2mm) Allied Flo-Coat® galvanized steel tube, and 0.1875” x 1.75” (5mm x 44mm) zinc-plated hot-rolled mild flat steel. Decking is 0.75” (19mm) anti-skid marine-grade polymer. Support bar and protective barrier are powder-coat painted.
2 to 5 Years and 5 to 12 Years
Not Applicable, attaches between two same height decks
CSA Z614, ASTM F1487
Color is a personal choice and an essential part in good playground design. Our playground consultants will help you make the best choices. See our Color Combinations or Color Options pages for more information.
