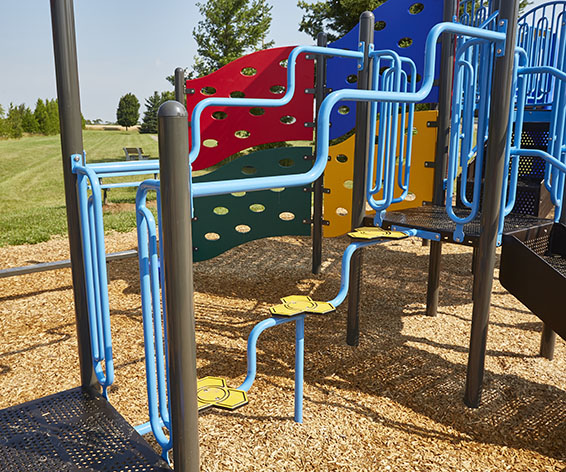

Curly Link is a mechanical assembly of climber and safety rails. Climber is a mechanical assembly of frame and pods. Frame is a welded assembly of 1.66” (42mm) O.D. x 11 gauge (3mm) Allied Flo-Coat® galvanized steel tube, 1.66” (42mm) 1018 carbon steel tube insert and 0.25” x 5” (6mm x 101mm) zinc-plated hot-rolled mild flat steel. Pods are 0.75” (19mm) bi-color sheet polyethylene. Safety Rails are a welded assembly of 1.315” (33mm) O.D. x 12 gauge (3mm) Allied Flo-Coat® galvanized steel tube, 1.029” (26mm) O.D. x 14 gauge (2mm) Allied Flo-Coat® galvanized steel tube, 0.1875” x 1.75” (5mm x 44mm) zinc-plated hot-rolled mild flat steel, 10 gauge satin-coat steel and 0.5” (13mm) O.D. hot rolled steel bar. Frame, connecting brackets, and safety rails are powder-coat painted.
5 to 12 Years
Attaches between two decks separated by 2ft (610mm) in elevation.
CSA Z614, ASTM F1487
Color is a personal choice and an essential part in good playground design. Our playground consultants will help you make the best choices. See our Color Combinations or Color Options pages for more information.
