Specifications

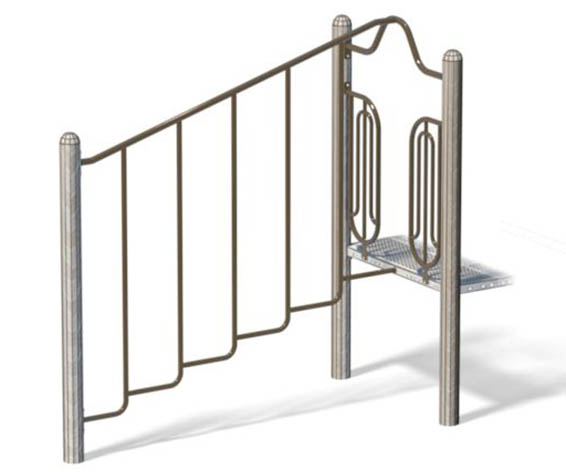

Tidal Wave Link to post is a mechanical assembly of link and universal safety hoop with top lug. Link is a welded assembly of 1.66” (42mm) O.D. x 11 gauge (3mm) Allied Flo-Coat® galvanized steel tube,1.315” (33mm) O.D. x 12 gauge (3mm) Allied Flo-Coat® galvanized steel tube, 1.66” (42mm) 1018 carbon steel tube insert, 1.315” (33mm) 1018 carbon steel tube insert, 0.1875” x 1.75” (5mm x 44mm) zinc-plated hot-rolled mild flat steel, and 0.25” x 2” (6mm x 51mm) zinc-plated hot-rolled flat mild steel. Universal safety hoop is a welded assembly of 1.315” (33mm) O.D. x 12 gauge (3mm) Allied Flo-Coat® galvanized steel tube, 1.029” (26mm) O.D. x 14 gauge (2mm) Allied Flo-Coat® galvanized steel tube, 0.5” (13mm) O.D. hot-rolled round steel bar, 10 gauge (3mm) satin-coated steel sheet and 0.1875” x 1.75” (5mm x 44mm) zinc-plated hot-rolled mild flat steel. Entire assembly is powder-coat painted.
Age Range:
5 to 12 Years
Deck Heights:
Deck Heights: 2, 3, 4, 5, 6ft (0.6, 0.9, 1.2, 1.5, 1.8m)
Playground Standards:
CSA Z614, ASTM F1487
Component Colors:
Color is a personal choice and an essential part in good playground design. Our playground consultants will help you make the best choices. See our Color Combinations or Color Options pages for more information.
