Specifications

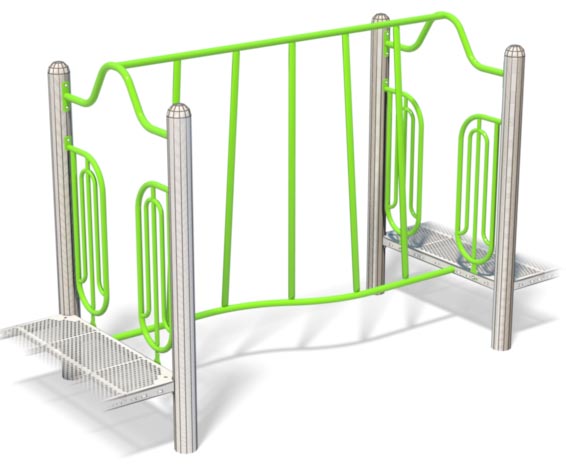

Twisty Link is a mechanical assembly of link and universal safety hoop with top lug. Link is a welded assembly of 1.66” (42mm) O.D. x 11 gauge (3mm) Allied Flo-Coat® galvanized steel tube, 1.66” (42mm) 1018 carbon steel tube insert and 1.315” (33mm) O.D. x 12 gauge (3mm) Allied Flo-Coat® galvanized steel tube. Universal safety hoop is a welded assembly of 1.315” (33mm) O.D. x 12 gauge (3mm) Allied Flo-Coat® galvanized steel tube, 1.029” (26mm) O.D. x 14 gauge (2mm) Allied Flo-Coat® galvanized steel tube, 0.5” (13mm) O.D. hot-rolled round steel bar, 10 gauge (3mm) satin-coated steel sheet and 0.1875” x 1.75” (5mm x 44mm) zinc-plated hot-rolled mild flat steel. Entire assembly is powder-coat painted.
Age Range:
5 to 12 Years
Deck Heights:
Not Applicable
Playground Standards:
CSA Z614, ASTM F1487
Component Colors:
Color is a personal choice and an essential part in good playground design. Our playground consultants will help you make the best choices. See our Color Combinations or Color Options pages for more information.
