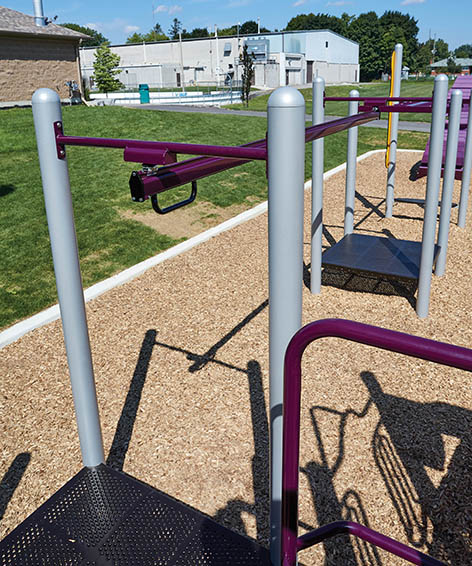

12’ Track Ride is a mechanical assembly of track, bar and trolley. Track is a mechanical assembly of “Starquip Track”, 0.375” x 4” (10mm x 102mm) hot-rolled mild flat steel, and 1.5” (38mm) O.D. x 0.625” (16mm) rubber bumper. Bar is a welded assembly of 1.66” (42mm) O.D. x 11 gauge (3mm) Allied Flo-Coat® galvanized steel tube, 0.1875” x 2.5” (5mm x 64mm) hot-rolled mild steel flat bar, 0.375” x 3” (10mm x 76mm) hot-rolled mild steel flat bar, 2.25” x 3” (57mm x 76mm) 10 gauge (3mm) satin-coated steel sheet and 0.1875” x 1.75” (5mm x 44mm) zinc-plated hot-rolled mild flat steel. Trolley is a welded assembly of 1.029” (26mm) O.D. x 14 gauge (2mm) Allied Flo-Coat® galvanized steel tube, 10 gauge (3mm) satin-coated steel sheet, steeling ball bearing and nylatron rod wheels. Track, bar and trolley handle are powder-coat painted.
5 to 12 Years
Available freestanding or for 6″ (152mm) through 2′ (610mm) decks.
CSA Z614, ASTM F1487
Color is a personal choice and an essential part in good playground design. Our playground consultants will help you make the best choices. See our Color Combinations or Color Options pages for more information.
