All Age Groups

All Purpose Use

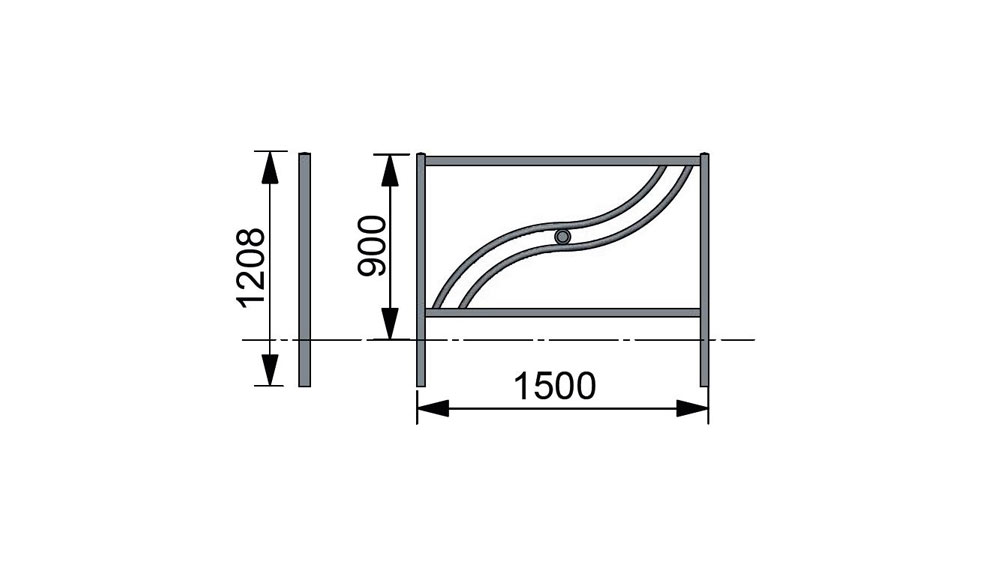

Dimensional characteristics
  • Line: Classic and Cannes
  • Sub-range: Barriers

Characteristics :

  • Frame and filling
    – Vertical uprights:
    . steel 60×40 th. 2.5mm
    . horizontal tubes: 40×25 steel
    . cross in 25×25 steel tube
    2 finishes : cap in foundry aluminum “diamond points” or balls
    Central molded steel badge with reservation for possible customization (logo, coat of arms, etc.)
  • Surface coating : hot dip galvanizing (after manufacture) + powder coating.
    As an option, a wide choice of colors and textures.

    Several types of fixings available :

    – Fixing 1 (on plates)
    – Fixing 2 (direct sealing)
    – Fixing 3 (removable in a socket to seal)

References :

– Diamond point finish: JMU-0109
– Ball finish: JMU-0103
