Specifications

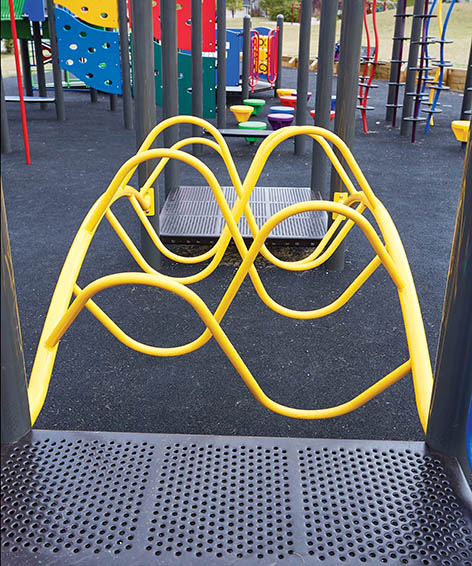

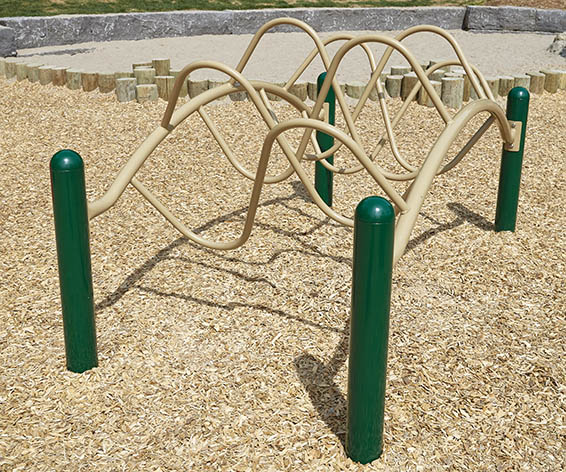

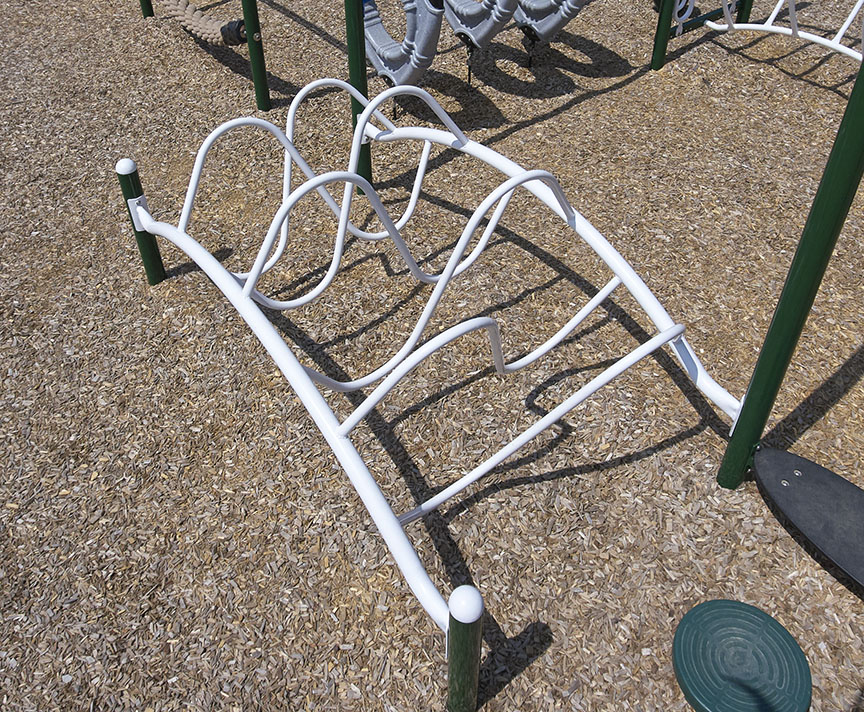

“S” Link Climber is a mechanical assembly of link and safety rail where required. Link is a welded assembly of 1.66” (42mm) O.D. x 11 gauge (3mm) Allied Flo-Coat® galvanized steel tube, 1.66” (42mm) 1018 carbon steel tube insert and 1.315” (33mm) O.D. x 12 gauge (3mm) Allied Flo-Coat® galvanized steel tube. Climber hoop is a welded assembly of 1.315” (33mm) O.D. x 12 gauge (3mm) Allied Flo-Coat® galvanized steel tube, 1.029” (26mm) O.D. x 14 gauge (2mm) Allied Flo-Coat® galvanized steel tube, 0.1875” x 1.75” (5mm x 44mm) zinc-plated hot-rolled mild flat steel, and 0.25” x 2” (6mm x 51mm) zinc-plated hot-rolled mild flat steel. Entire assembly is powder-coat painted.
Age Range:
2 to 5 Years and 5 to 12 Years
Deck Heights:
Not Applicable, can be functionally linked with other play events.
Playground Standards:
CSA Z614, ASTM F1487
Component Colors:
Color is a personal choice and an essential part in good playground design. Our playground consultants will help you make the best choices. See our Color Combinations or Color Options pages for more information.
